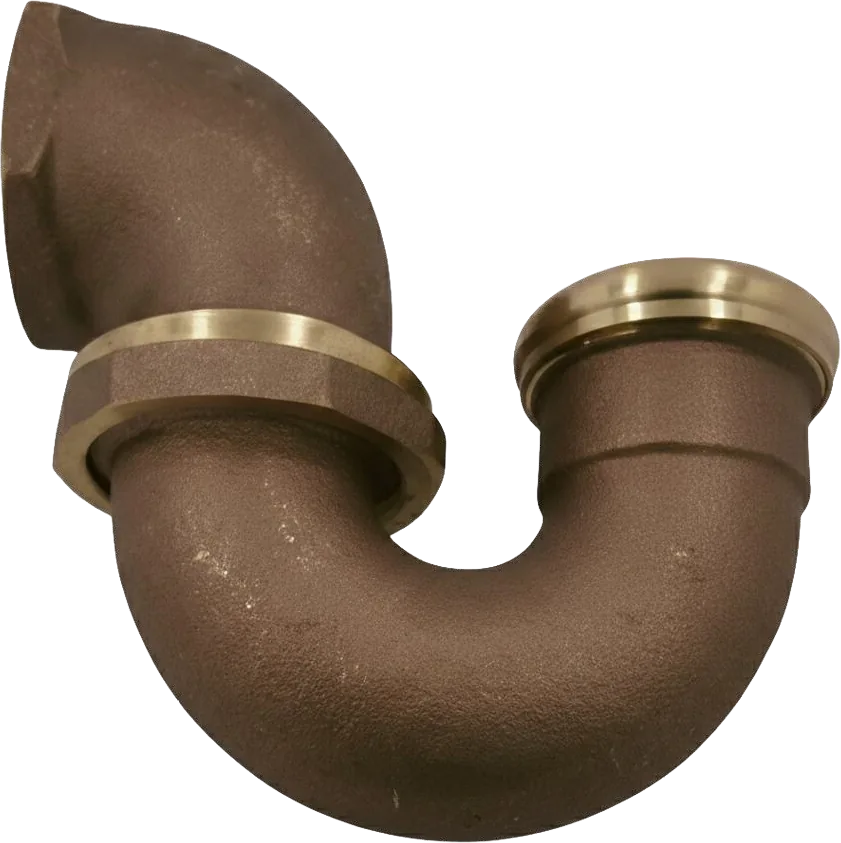

Trap Cast Brass/CP

Trap Cast Brass/CP

MODEL:

  • TRAP B
  • TRAP E
  • TRAP Z

Dimension (mm)

Model H L L1
TRAP B 136 129 57.5
TRAP E 136 129 57.5
TRAP Z 136 129 57.5

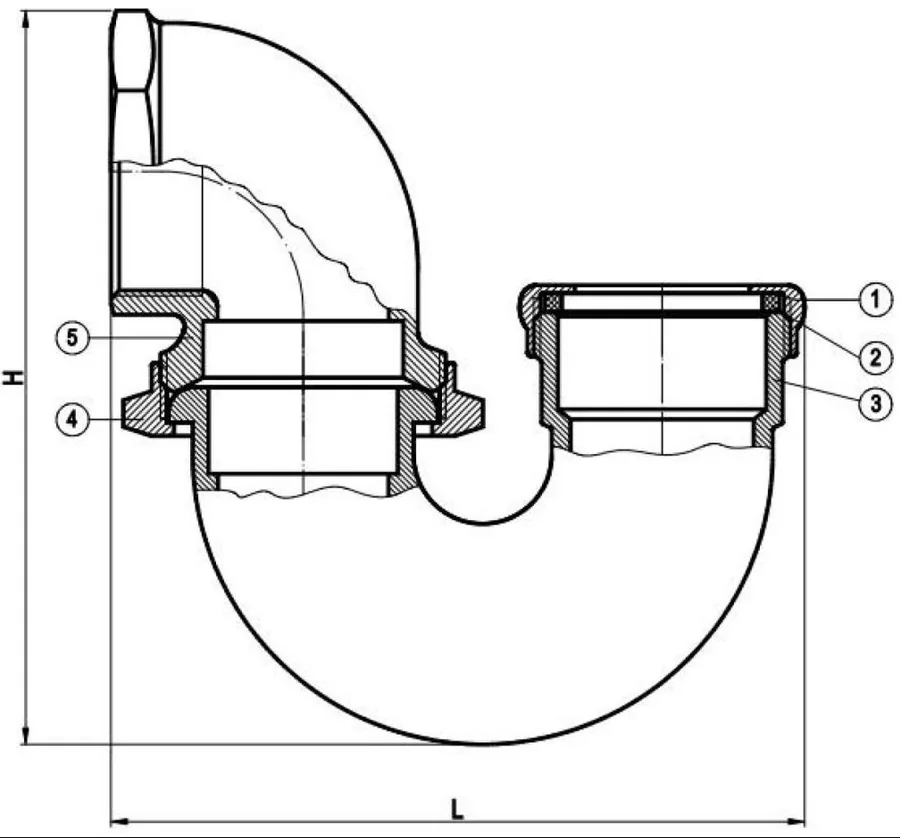

Exploded diagram of Trap Cast Brass/CP

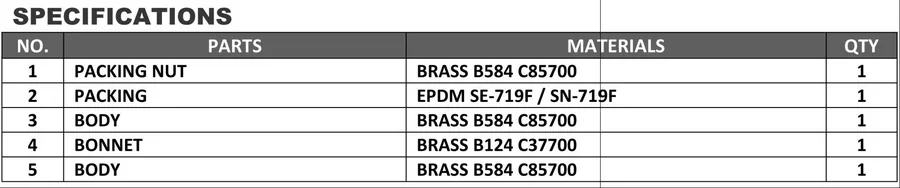

Specifications table for Trap Cast Brass/CP

Installation

  1. Installing the Packing and Nut onto the sink tailpiece pipe
  2. Attach the body to the packing nut, align it properly, and then tighten it securely
  3. Connect the outlet and secure it firmly
  4. Inspect all connection

Maintenance

Leakage:
Slightly tighten the Packing Nut or Bonnet (approximately 1/8 turn to 1/4 turn) with a wrench. Do not over-tighten.

Tools Required

  1. Adjustable Wrench or Pipe Wrench
