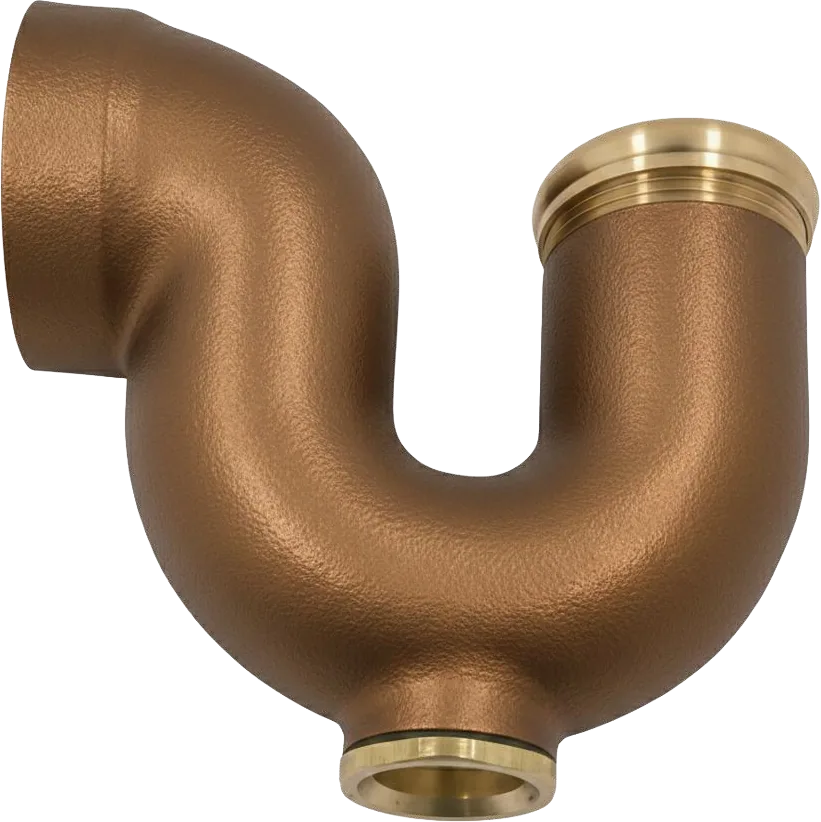

Trap Cast Brass/CP

Trap Cast Brass/CP

MODEL:

  • TRAP H
  • TRAP M
  • TRAP H WON

Dimension (mm)

Model H L L1
TRAP H 139 143 66.5
TRAP M 139 143 65
TRAP H WON STANDARD NY PROFILE DIMENSION

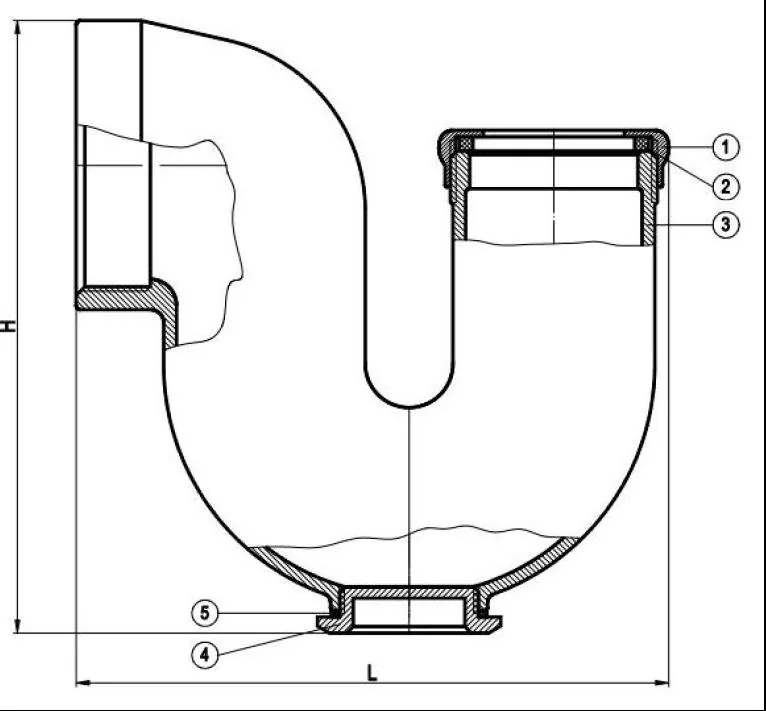

Exploded diagram of Trap Cast Brass/CP

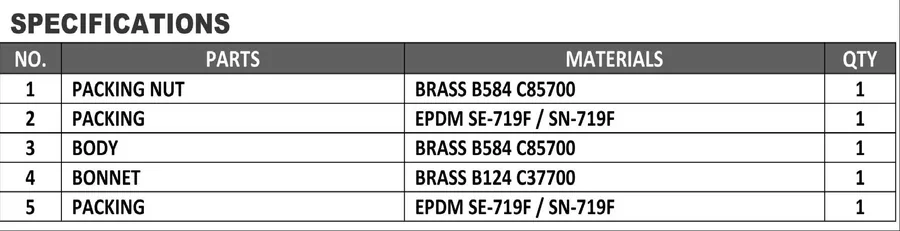

Specifications table for Trap Cast Brass/CP

Installation

  1. Installing the Packing and Nut onto the sink tailpiece pipe
  2. Attach the body to the packing nut, align it properly, and then tighten it securely
  3. Connect the outlet and secure it firmly
  4. Inspect all connection

Maintenance

Leakage:
Slightly tighten the Lock Nut (approximately 1/8 turn to 1/4 turn) with a wrench. Do not over-tighten.

Tools Required

  1. Adjustable Wrench or Pipe Wrench
