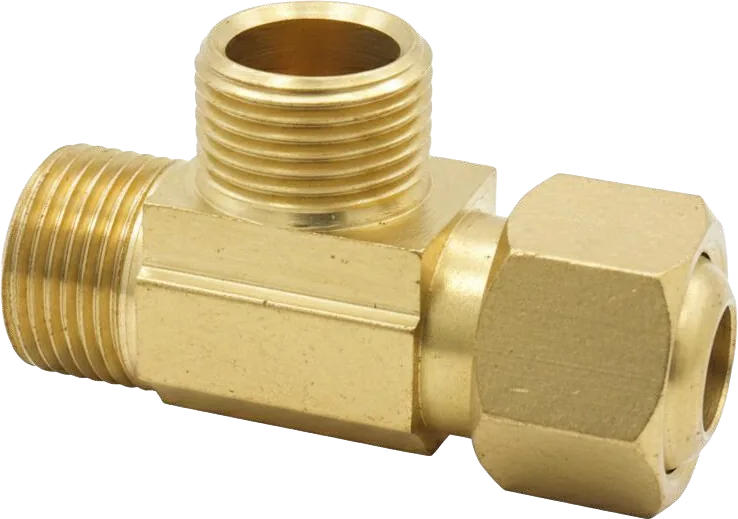

Swivel Tee Adapter

Swivel Tee Adapter

MODEL:

  • LC 55A
  • LC 56A

Warning & Notes

Turn off the water supply and release system pressure before installation.

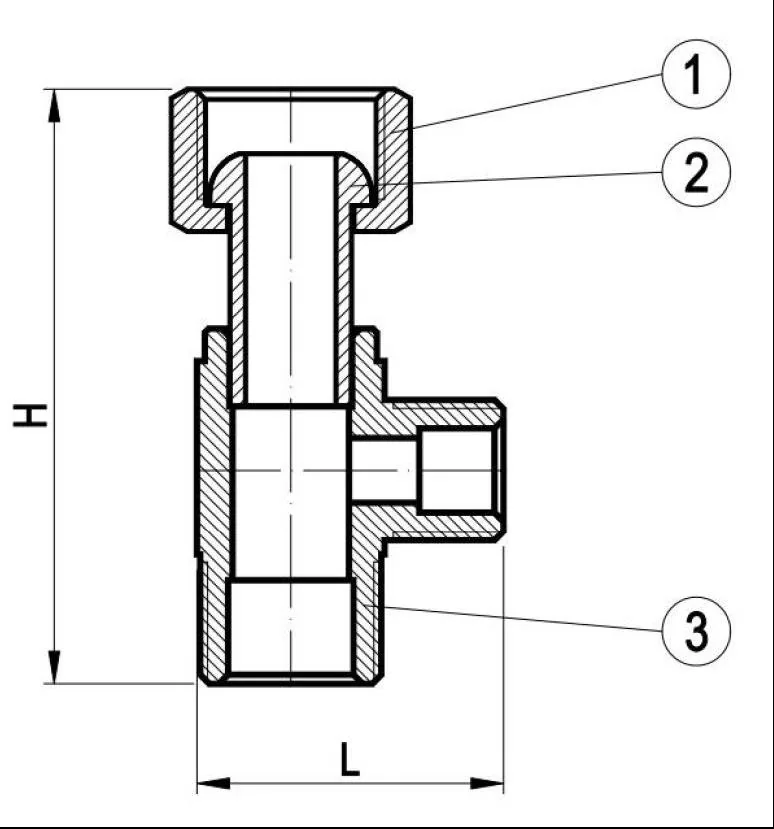

Exploded diagram of Swivel Tee Adapter

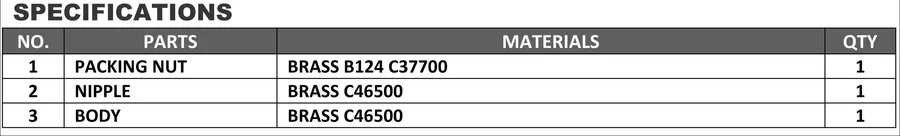

Specifications table for Swivel Tee Adapter

Installation

  1. Attach the outlet fitting to the packing nut, make sure the thread size matches, and then tighten it securely
  2. Adjust the direction as needed
  3. Connect the main device in a straight line to the pipe that has already been installed using a compression packing ring and nut, and tighten it securely
  4. Connect the main dev to the pipe that has a installed using a comp ring and nut, and tigh

Maintenance

Leakage:
Slightly tighten the Packing Nut (approximately 1/8 turn to 1/4 turn) with a wrench. Do not over-tighten.

Tools Required

  1. Adjustable Wrench or Pipe Wrench
