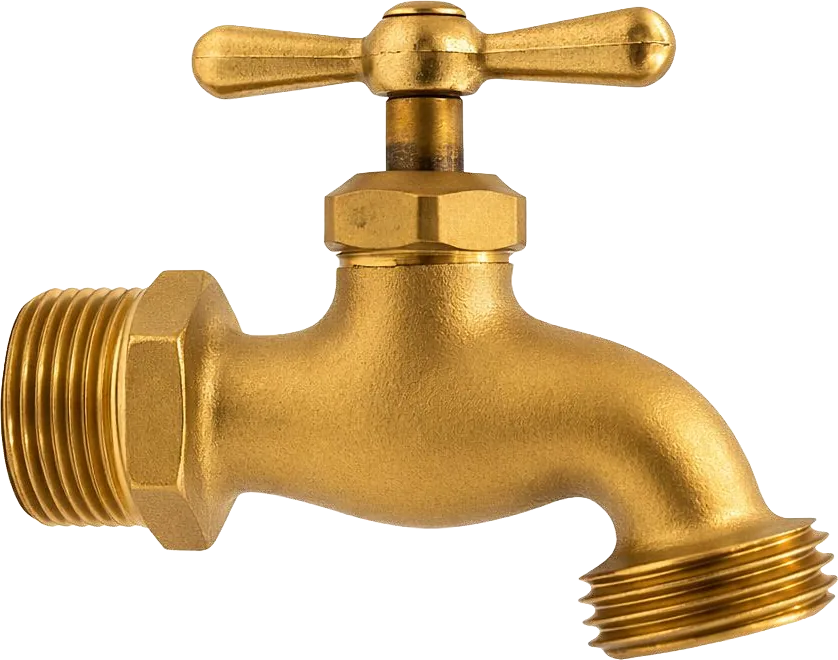

Hose Bibb Valves

Hose Bibb Valves

MODEL:

  • LB 38
  • LB 39
  • LB 81
  • LB 82

Warning & Notes

Turn off the water supply and release system pressure and allow hot water to cooling before installation.

Dimension (mm)

Model H L D
LB 38 67 91.6 55.7
LB 39 67 91.6 55.7
LB 81 68.3 86 55.7
LB 82 117.5 139 55.7

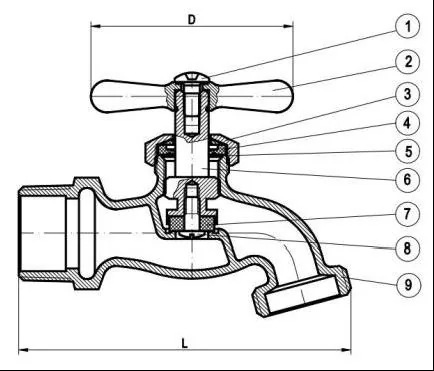

Exploded diagram of Hose Bibb Valves

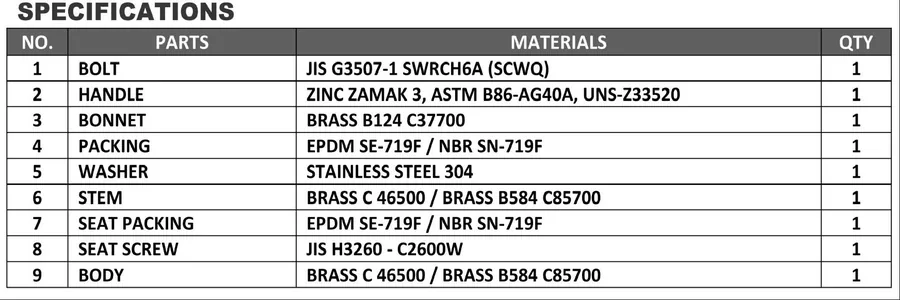

Specifications table for Hose Bibb Valves

Installation

  1. Apply PTFE (Teflon) thread seal tape clockwise around the male pipe threads 5 to 6 times
  2. Thread the valve onto the pipe by hand. Use a wrench on the flats of the brass body and tighten securely
  3. Rotate the valve until the hose connection points right. Do not over- tighten.
  4. Close the handle firm the water supply and connections for leaks

Maintenance

Leakage Around the Stem (Below Hand-wheel):
Slightly tighten the packing nut (approximately 1/8 turn) with a wrench. Do not over-tighten.

Valve Fails to Shut Off Completely (Persistent Dripping):
Isolate the water supply, remove the bonnet assembly, and inspect the seat washer. Clean or replace the washer as necessary

Tools Required

  1. Adjustable Wrench or Pipe Wrench
  2. PTFE (Teflon) thread seal tap
