Garden Valves

Garden Valves

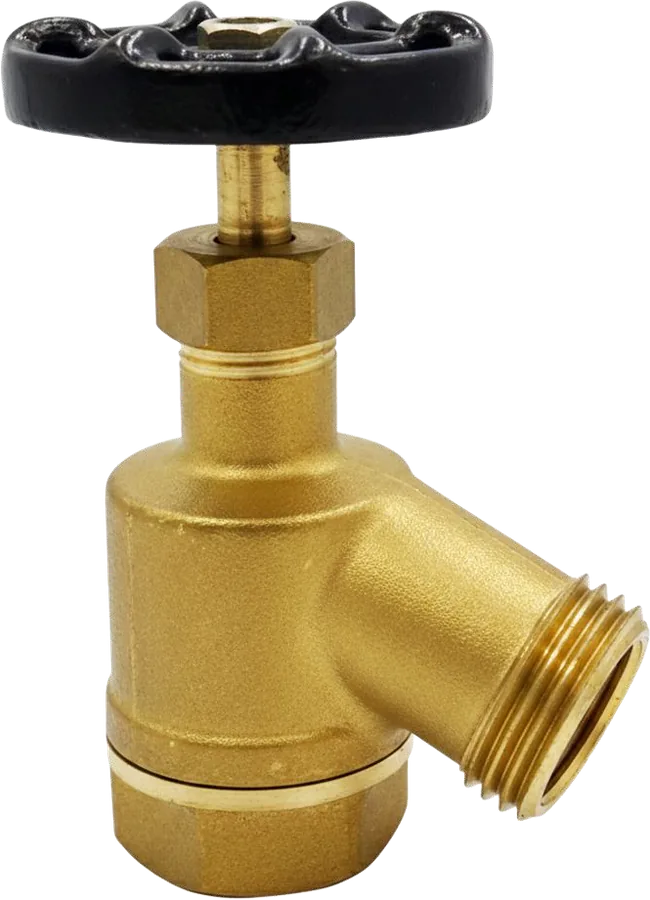

MODEL:

  • LB 34
  • LB 35
  • LB 36
  • LB 37
  • LB 37A

Warning & Notes

Turn off the water supply and release system pressure and allow hot water to cooling before installation.

Dimension (mm)

Model H L D
LB 34 88.8 62.4 54.1
LB 35 89.3 62.4 54.1
LB 36 91.6 64.9 54.1
LB 37 92 67 54.1
LB 37A 92 72.6 54.1

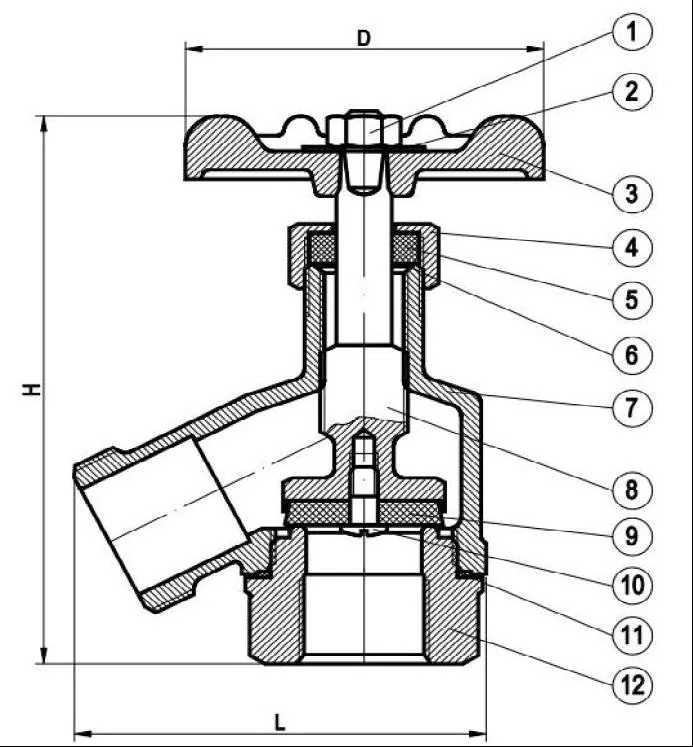

Exploded diagram of Garden Valves

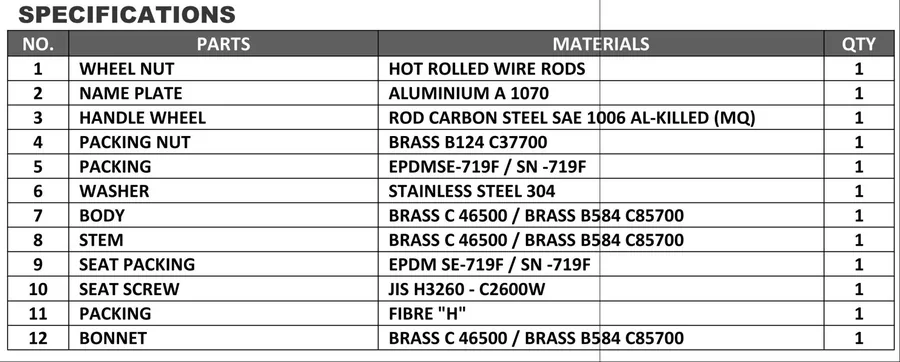

Specifications table for Garden Valves

Installation

  1. Apply PTFE (Teflon) thread seal tape to the external male threads of the supply pipe stub clockwise around the male pipe threads 5 to 6 times
  2. Thread the valve onto the pipe by hand. Use a wrench on the flats of the brass body and tighten securely
  3. Rotate the valve until the hose connection points right. Do not over-tighten
  4. Close the hand whee on the water supply a connections for leaks

Maintenance

Leakage Around the Stem (Below Handle):
Slightly tighten the packing nut (approximately 1/8 turn) with a wrench. Do not over-tighten.

Valve Fails to Shut Off Completely (Persistent Dripping):
Isolate the water supply, remove the bonnet assembly, and inspect the seat washer. Clean or replace the washer as necessary.

Tools Required

  1. Adjustable Wrench or Pipe Wrench
  2. PTFE (Teflon) thread seal tape
