Cast Brass Urinal Spud & Closet Spud

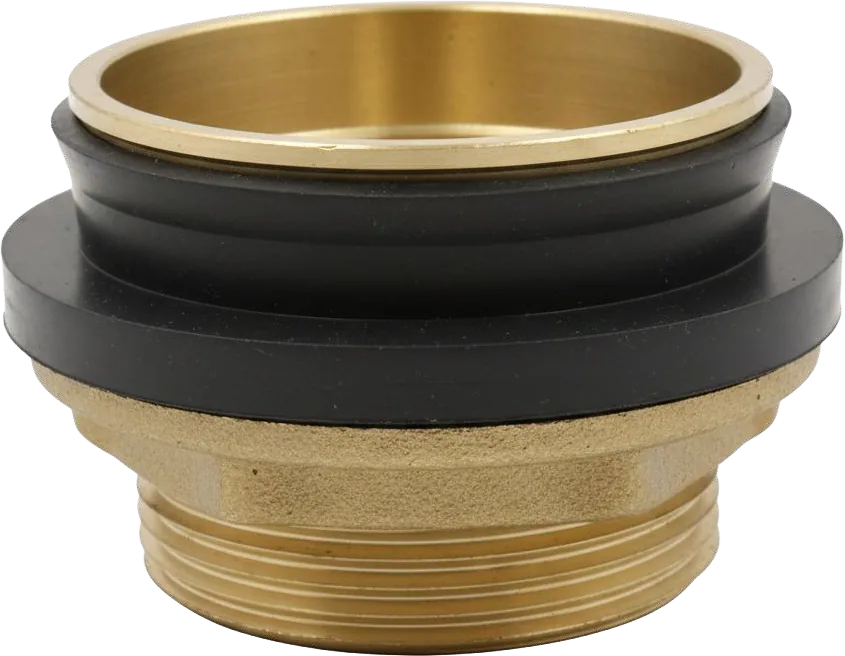

Cast Brass Urinal Spud & Closet Spud

MODEL:

  • SP 1
  • SP 2
  • SP 3
  • SP 4
  • SP 5
  • SP 6
  • SP 7
  • SP 8

Dimension (mm)

Model H D
SP 1 43.5 54.0
SP 2 41.0 58.8
SP 3 41.0 66.0
SP 4 41.0 66.0
SP 5 40.5 69.0
SP 6 41.0 67.8
SP 7 41.0 77.9
SP 8 43.7 80.0

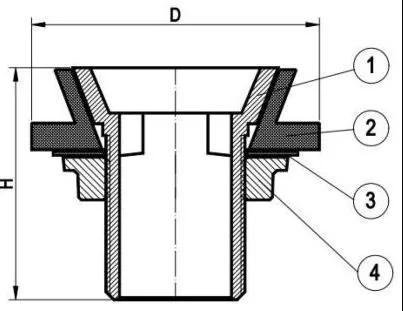

Exploded diagram of Cast Brass Urinal Spud & Closet Spud

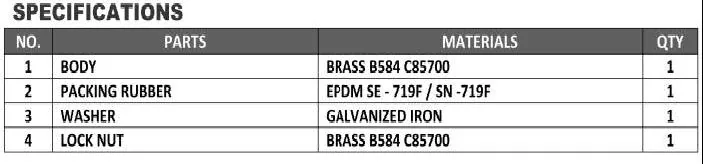

Specifications table for Cast Brass Urinal Spud & Closet Spud

Installation

  1. Remove Lock Nut, Washer and Packing rubber
  2. Fit the body into the prepared holes , porcelain fixture and reinstall the parts that were removed.
  3. Tighten the lock nut securely
  4. Inspect all connection

Maintenance

Leakage:
Slightly tighten the Lock Nut (approximately 1/8 turn to 1/4 turn) with a wrench. Do not over-tighten.

Tools Required

  1. Adjustable Wrench or Pipe Wrench
