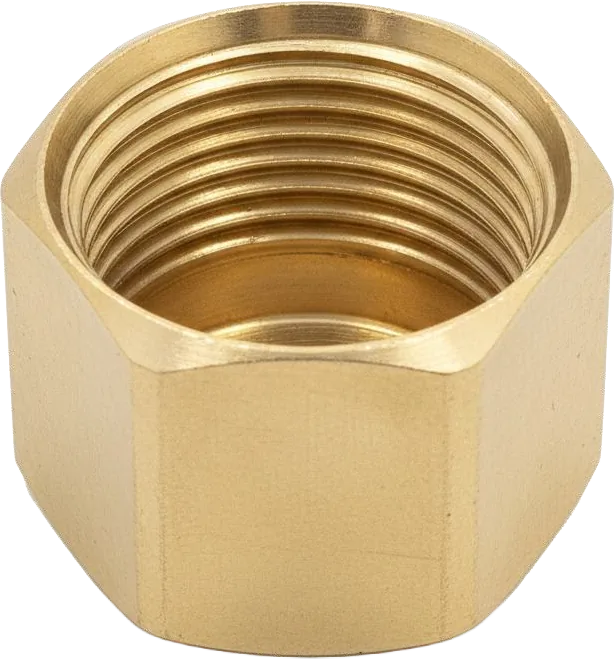

Brass Compression Cap
MODEL:
- LC 177
- LC 178
- LC 378
- LC 379
- LC 1074

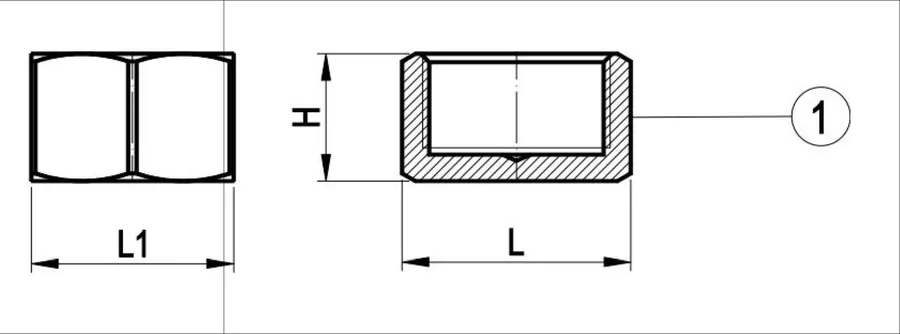

Dimension (mm)
| Model | H | L | l1 |
|---|---|---|---|
| LC 177 | 10.2 | 14.6 | 12.7 |
| LC 178 | 12.0 | 18.5 | 16.0 |
| LC 378 | 12.0 | 21.5 | 19.0 |
| LC 379 | 12.8 | 25.0 | 22.2 |
| LC 1074 | 11.2 | 16.5 | 14.3 |
Installation
- Check the thread size on the male fitting to make sure it matches the available cap
- Insert the cap and slowly turn it clockwise by hand
- Tighten it properly with the wrench, Do not over-tighten
- Turn on the water supply connections for leaks
Maintenance
Leakage:
Slightly tighten the Packing Nut (approximately 1/8 turn to 1/4 turn) with a wrench. Do not over-tighten.
Tools Required
- Adjustable Wrench or Pipe Wrench
