Angle Stop Valves

Angle Stop Valves

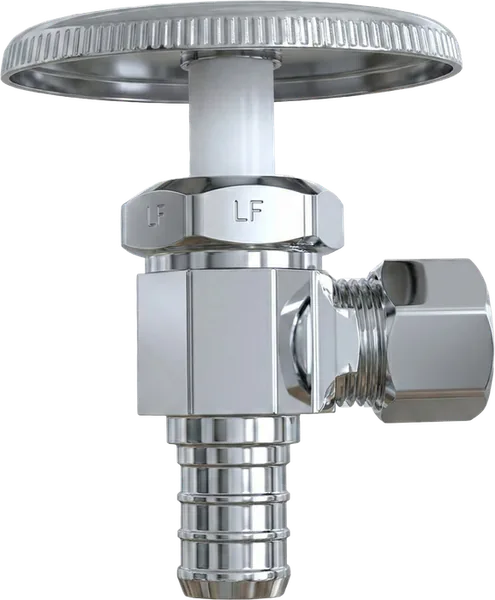

MODEL:

  • LCA 1A

Warning & Notes

Turn off the water supply and release system pressure before installation.

Dimension (mm)

Model H L L1 D
LCA 1A 57.5 36.5 20.5 51.2

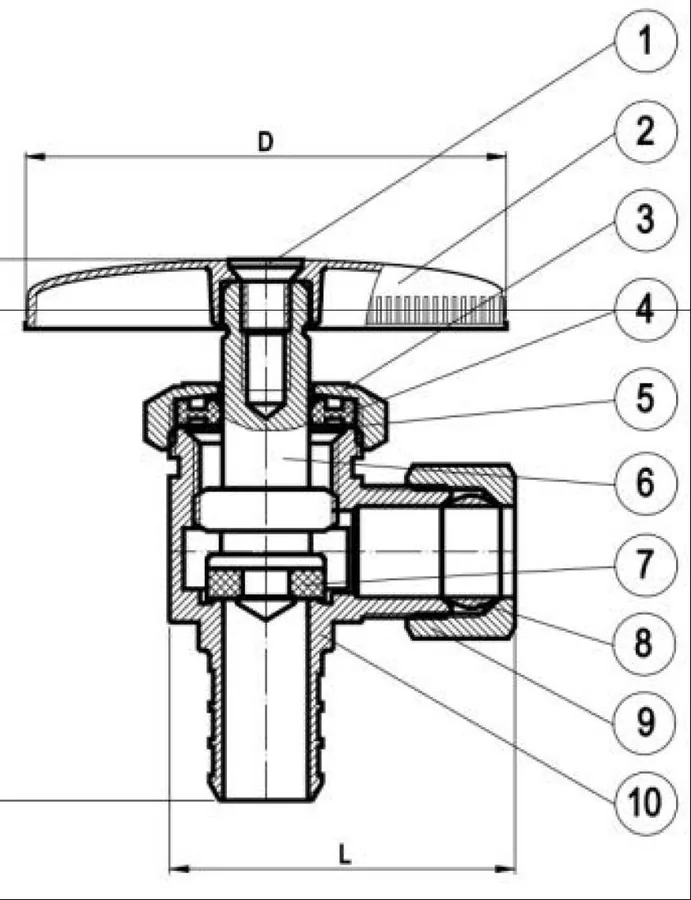

Exploded diagram of Angle Stop Valves

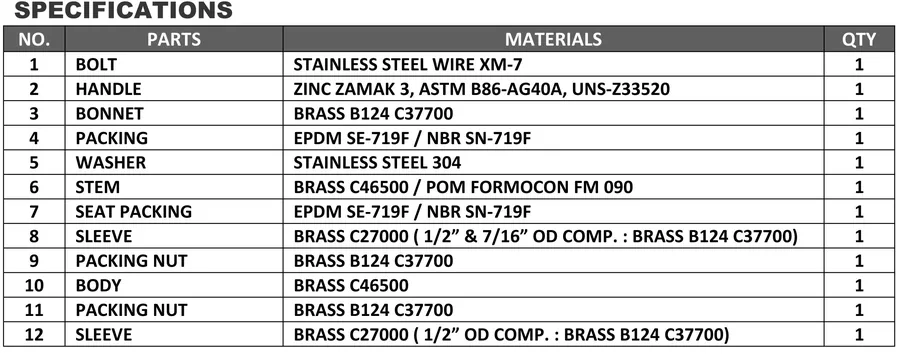

Specifications table for Angle Stop Valves

Installation

  1. Install the inlet using a PEX fitting that fits properly
  2. Assembling the Outlet Joint pipe using a compression ring and tighten it securely
  3. Close the handle firmly. Slowly turn on the water supply and inspect all connections for leaks

Maintenance

Leakage Around the Stem (Below Handle):
Slightly tighten the packing nut (approximately 1/8 turn) with a wrench. Do not over-tighten.

Valve Fails to Shut Off Completely (Persistent Dripping):
Isolate the water supply, remove the bonnet assembly, and inspect the seat washer. Clean or replace the washer as necessary.

Tools Required

  1. Adjustable Wrench or Pipe Wrench
